Triangle Film Folding Machine/ZB

Optional Device

Ultrasonic Sealing

Air Shaft

Auto Tension Controller

SKU: 32869918048-1-2-1-1-1-1-1-1-1-1-2-1 Category: Bag Making Machine

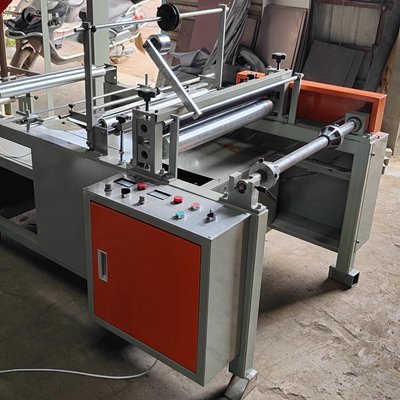

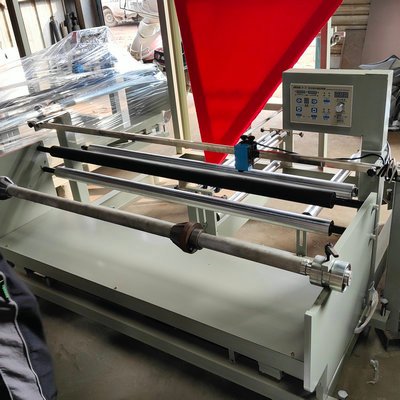

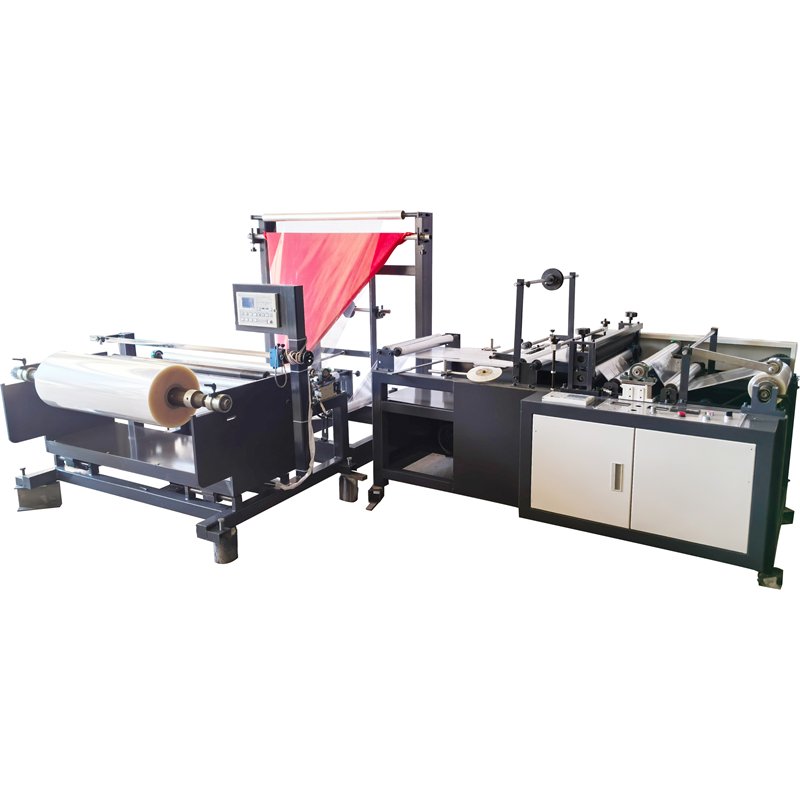

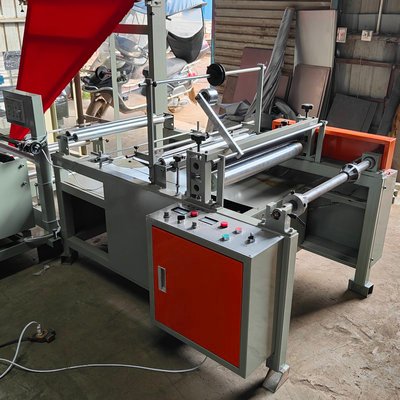

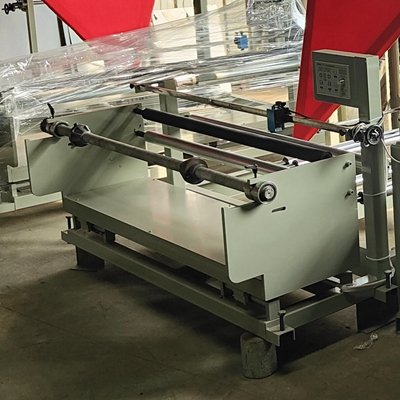

Film Triangle Folding Machine, main for single sheet folding and rewinding. The machine is for folding single sheet film BOPP or PE film etc. Double-side adhesive tape and pearlized film can be folded together for making header bags. Ultrasonic cooperates with hobbling vertical sealing. which can make header bags. the unwinder with the tension controller, and edge correction control system to make sure the folding is accurate.

Film Triangle Folding Machine Main Technical Variable:

Model	ZB-800	ZB-1000	ZB-1400
Max Raw Material Width	700mm	900mm	1300mm
Max Winding Speed	60m/min	60m/min	60m/min
Total Power	1.5kw	1.5kw	2KW
Machine Weight	500kg	500kg	600KG
Over Size	2800×1500×1500mm	2800×1500×1500mm	2800×1800×1500mm

Machine Detail Description:

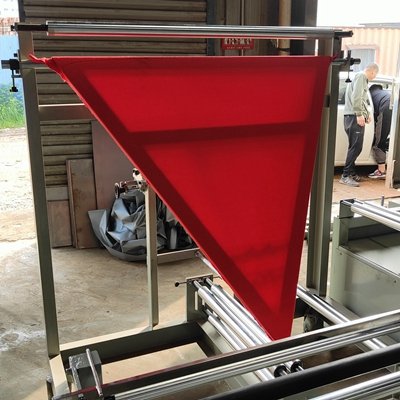

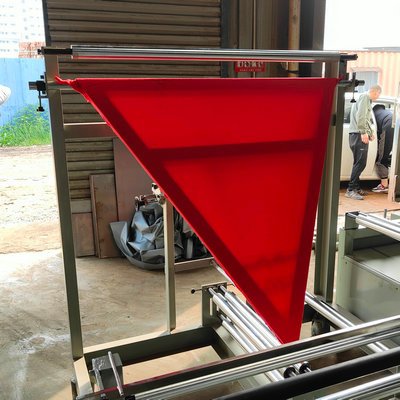

Film triangle folding machine folder

Machine Video

https://www.ruixinmc.com/double-lines-film-blowing-machine.html

How we know your machinery quality ?

Firstly, welcome to visit our workshop for inspecting our company.
For general model machinery, we can send enough information about the machine to make sure you well understand the quality of us
For customized machine, the design paper can be supplied and similar machine information can be supplied also.
For some model machine, sample can be made on your material sample

How to install machine in our workshop ?

Firstly, you need worker or operator who have the experience to operate similar machine
Most our machine is easily to install, simple operate can start the machine.
The whole operation manual is availabele, and the operation video is available also, and guide on line is available too.
For some complicated machine, engineer come to your place is possible(it is charged)

What about the delivery time ?

For general model of the machine, about 30 working days
For special customized machine, will be longer.

Can you tell us the whole transaction process? What do we need to do to start the transaction?

a).we agree the machinery detail request.
b).You pay 30% deposit, then we start the machinery productioin.
c).when we finished machine production, we will test the machine, the test video will be sent, or you can visit us to inspect the machine quality
d).If no question of the finished machinery, we will pack the machine.
e).Balance Paying before package sending out.
