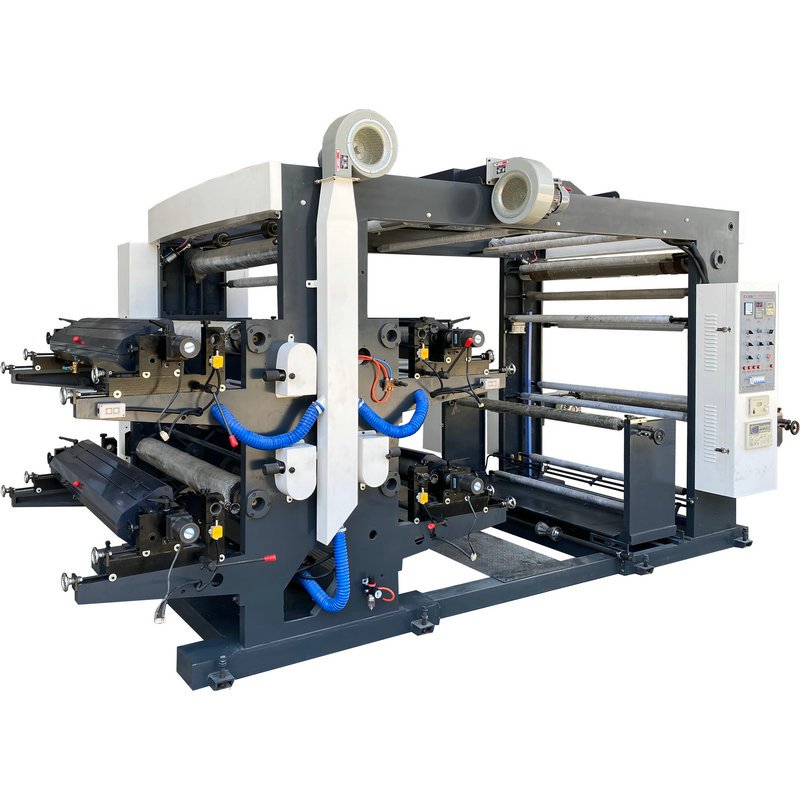

Flexo Printing Machine Four Color YT4 which has four printing units is suitable for printing packing materials such as polyethylene, polypropylene plastic film, non-woven fabric roll, paper roll, etc. And it is a kind of ideal printing equipment for producing nonwoven fabric packing bag, supermarket handbags, vest bags, clothes bags, etc.
Flexo printing machines description
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements, Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with an even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break the circuit when the flexo printing machine stops.
6.360° Continuous and adjustable longitudinal register device.
7. The imported frequency control of motor speed adapts to different printing speeds.
8. There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Flexo Printing Machine Main Tecnical Variable
| Model | YT-4600 | YT-4800 | YT-41000 |
| Max. Width of Printing Material | 600mm | 800mm | 1000mm |
| Max. Printing With | 560mm | 760mm | 960mm |
| Length of Printed Product | 191-914mm
(out of this range need customized) |
||
| Max. Diameter of Roll Material | φ450mm | ||

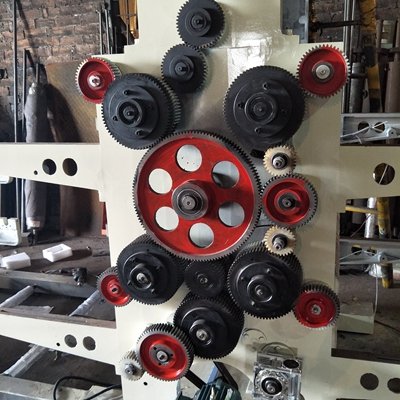

| Printing Speed | 5～50m/min (by super gear transmission)
(Up to 80m/min will adopt synchronous belt power transmission) |
||
| Total Power | 16KW | 18KW | 19KW |
| Weight of Machine | 4000KG | 4200KG | 4500KG |
| Overall Dimensions | 4800×2000×2400mm | 4800×2000×2400mm | 4800×2000×2400mm |
