EMBOSSING MACHINE

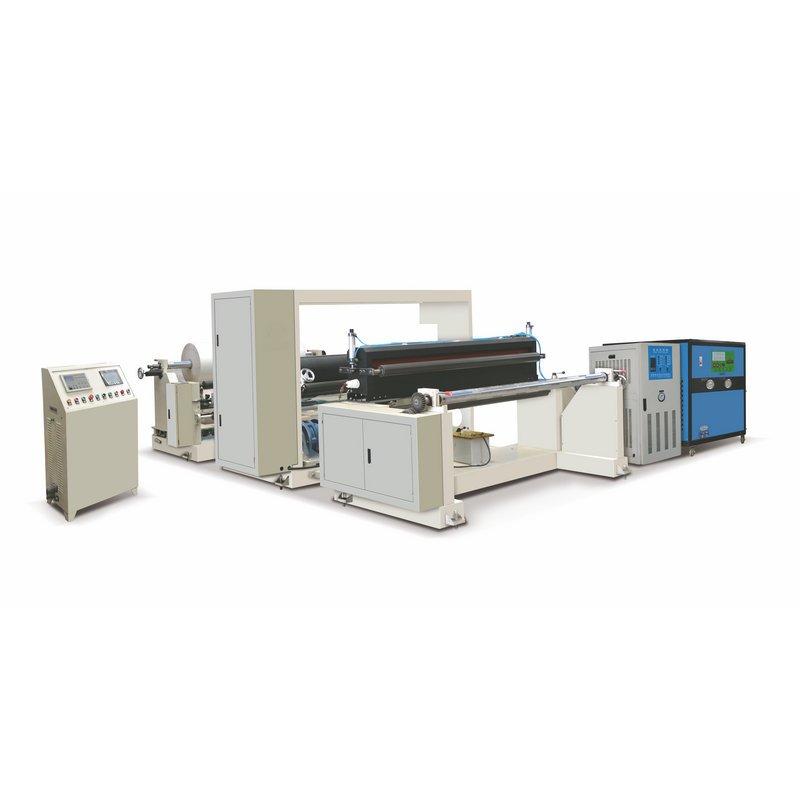

SLYH ROLLER TO ROLLER EMBOSSING MACHINE

INQUIRE NOW

SKU: 32869918048-1-1-1-1 Category:
Description

Description:

The reel embossing machine is a fully automatic embossing machine integrating machine, electricity and hydraulic pressure.
Applicable: Composite non-woven fabrics, high and low pressure materials, PVC, transparent films and other plastic films, paper, leather, aluminum-coated paper, aluminum foil, and other products for embossing processing of reel accessories, capable of producing various exquisite patterns and patterns Ideal equipment for pressing.

Main Technical Variable:

Model SLYH-920 SLYH-1150 SLYH-1300
Embossed Width 920mm 1150mm 1300mm
Embossed Speed 60-80m/min 60-80m/min 60-80m/min
Unwinding Roller Dia 1000mm 1000mm 1000mm
Winding Roller Dia. 1200mm 1200mm 1200mm
Winding Brake 200N.M 200N.M 200N.M
Winding Motor 4KW 5.5KW 7.5KW
Working Pressure 3-8Mpa 3-8Mpa 3-8Mpa
Heating Power 5.2KW 7.8KW 9KW
Total Power 15KW 18KW 20KW
Weight 6200KG 6500KG 6800KG
Over Dimensions 7000×2070×2300 7000×2300×2300 7000×2450×2300
FAQs

How we know your machinery quality ?

Firstly, welcome to visit our workshop for inspecting our company.
For general model machinery, we can send enough information about the machine to make sure you well understand the quality of us
For customized machine, the design paper can be supplied and similar machine information can be supplied also.
For some model machine, sample can be made on your material sample

How to install machine in our workshop ?

Firstly, you need worker or operator who have the experience to operate similar machine
Most our machine is easily to install, simple operate can start the machine.
The whole operation manual is availabele, and the operation video is available also, and guide on line is available too.
For some complicated machine, engineer come to your place is possible(it is charged)

What about the delivery time ?

For general model of the machine, about 30 working days
For special customized machine, will be longer.

Can you tell us the whole transaction process? What do we need to do to start the transaction?

a).we agree the machinery detail request.
b).You pay 30% deposit, then we start the machinery productioin.
c).when we finished machine production, we will test the machine, the test video will be sent, or you can visit us to inspect the machine quality
d).If no question of the finished machinery, we will pack the machine.
e).Balance Paying before package sending out.
