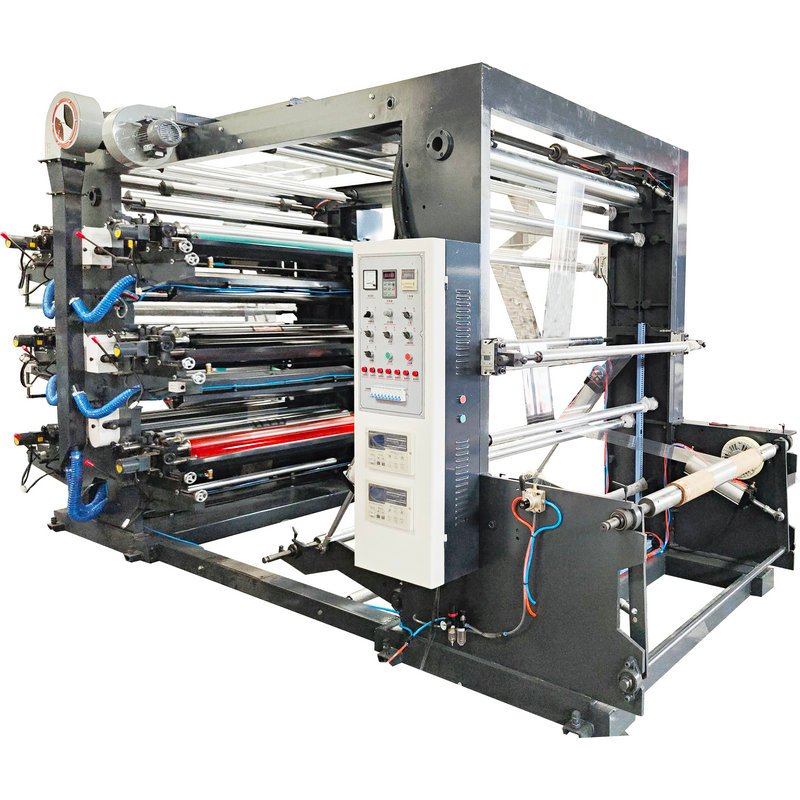

The Printing machine is suitable for printing packing materials such as polyethylene, polypropylene plastic film, nonwoven fabric roll, paper roll, etc. And it is a kind of ideal printing equipment for producing nonwoven fabric packing bags, supermarket handbags, vest bags,and clothes bags, etc.
Description
1. Easy operation, flexible starting, accurate, and easy color register.
2. The meter counter can set printing quantity according to the requirements, Stop the machine automatically at the set quantity or when the material is cut off.
3. Lifting the printing plate cylinder automatically by pneumatic cylinder, will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with an even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break the circuit when the machine stops.
6. 360° Continuous and adjustable longitudinal register device.
7. The inverter-controlled motor speed adapts to different printing speeds.
8. There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy to operate the printing machine when the plate is installed.
Main Technical Variable of the printing machine
| Model | YT-6600 | YT-6800 | YT-61000 |
| Max. Width of Printing Material | 600mm | 800mm | 1000mm |
| Max. Printing With | 560mm | 760mm | 960mm |
| Length of Printed Product | 191-914mm
(out of this range need customized) |
||
| Max. Diameter of Roll Material | φ450mm | ||
| Printing Speed | 5～50m/min (by super gear transmission)
(Up to 80m/min will adopt synchronous belt power transmission) |
||
| Total Power | 16KW | 18KW | 19KW |
| Weight of Machine | 5000KG5 | 200KG | 5500KG |
| Overall Dimensions | 4800×2000×2600mm | 4800×2000×2600mm | 4800×2000×2600mm |
