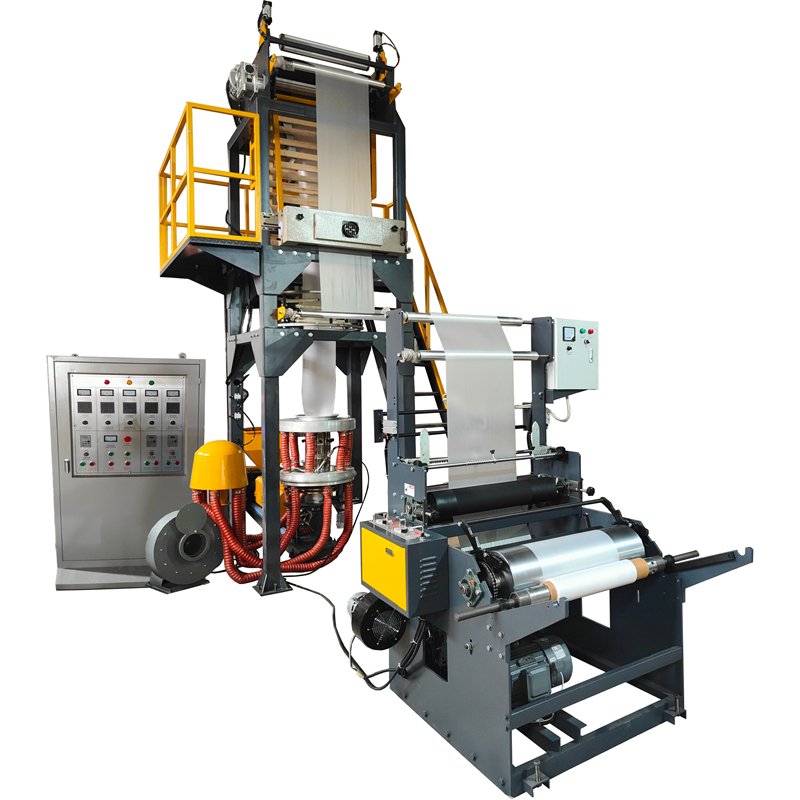

The PE film blowing machine is an essential tool in the packaging industry to manufacture small HDPE or LDPE films. These films are widely employed for shopping bags, goods packing bags, and various other packaging materials. The machine’s main motor incorporates frequency control, thereby enhancing its stability and leading to a 30% reduction in electricity consumption. Furthermore, the PE film blowing machine’s screw and material barrel are constructed with durable 38 chrome molybdenum aluminum, which undergoes a nitrogen treatment. Additionally, the inverter control the traction system.
The PE film blowing machine plays a crucial role in efficiently producing high-quality films for packaging purposes. By employing frequency control for the main motor, the machine ensures smoother operation and effectively reduces energy usage. This not only benefits the environment but also results in cost savings for businesses. Moreover, the machine’s robust construction, owing to the utilization of 38 chrome molybdenum aluminum material and nitrogen treatment, rise its longevity and resistance to wear and corrosion.
Feature:
In addition, the PE film blowing machine incorporates inverter control for the traction system. thereby facilitating precise adjustments to the film’s tension during the blowing process. This control mechanism enables consistent production of films with uniform thickness and excellent physical properties. Consequently, it successfully meets the stringent quality standards set by the packaging industry.
In summary, the PE film blowing machine is an invaluable asset in the packaging industry. Its efficient energy utilization, durable construction, and precise control mechanisms make it an ideal choice for manufacturing high-quality HDPE and LDPE films. With its contribution to sustainability and cost-effectiveness. The machine continues to drive innovation in the packaging industry, catering to the escalating demand for reliable and eco-friendly packaging solutions. Ultimately, the PE film blowing machine stands as a crucial component in the production process. Mnufacture revolutionizing the way packaging materials
Main Techincal Variable:
| Model | SJ-A50-700 | SJ-A55-900 | SJ-A60-1200 | SJ-A65-1400 |
| Screw Diameter | 50mm | 55mm | 60mm | 65mm |
| Screw Ratio(L/D) | 30:1 | 30:1 | 30:1 | 30:1 |
| Screw Speed | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Power of Main Motor | 11Kw | 15Kw | 18.5Kw | 22Kw |
| Max.Output | 35kg/h | 50kg/h | 65kg/h | 80kg/h |
| Max. Folding Width of Film | 600mm | 800mm | 1000mm | 1200mm |
| Single-sided Thickness of Film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Total Power | 22Kw | 26Kw | 30Kw | 36Kw |
| Weight of Machine | 2.5T | 2.9T | 3.4T | 3.5T |
| Overall Dimensions | 6200×2050× 4700mm | 6800×2500× 5000mm | 7200×2700× 5800mm | 7300×2900× 5800mm |
Optional Device
Rotary Die Device
Triangle Folding DeviceWinder Down Traction
Manual Fast Filter Changer
Corona Treater
Auto Loader or Dry Hopper
